Kernel 5.2

AmigaOne X5000 platform specific issues related to Linux only.
User avatar
xeno74
Posts: 5673
Joined: Fri Mar 23, 2012 7:58 am

Re: Kernel 5.2

Post by xeno74 »

acefnq wrote:Christian
Sorry but I can't get any logs. Once it fails I have to reboot and remove thexorg.conf which in turn requires another reboot thus overwriting the log file we wish to access. RC6 boots fine to Firepro with logitech mouse working.

ace
Hi Ace,

Thanks for your reply! :-) Can you switch with CTRL + ALT + F1 (F2, F3, F4 etc) to another terminal after booting with the xorg.conf?

Thanks,
Christian
http://www.amigalinux.org
http://www.supertuxkart-amiga.de

Running Linux on AmigaONEs can require some tinkering.

User avatar
Skateman
Posts: 416
Joined: Thu Aug 10, 2017 8:36 pm
Location: The Netherlands

Re: Kernel 5.2

Post by Skateman »

RC6 is running fine on the AmigaOne X5000


Big picture http://www.skateman.nl/wp-content/uploa ... 204938.png
AmigaOne X5000 -> 2GHz / 16GB RAM / Radeon R7 250 / M-Audio 5.1 -> AmigaOS 4.1 FE / Ubuntu Linux
Amiga 1200 -> Recapped / 68ec020 ACA 1221ec / CF HDD / RetroNET connected to the world

User avatar
xeno74
Posts: 5673
Joined: Fri Mar 23, 2012 7:58 am

Re: Kernel 5.2

Post by xeno74 »

Skateman wrote:RC6 is running fine on the AmigaOne X5000
Thanks a lot for testing! :-)

- Christian
http://www.amigalinux.org
http://www.supertuxkart-amiga.de

Running Linux on AmigaONEs can require some tinkering.

User avatar
xeno74
Posts: 5673
Joined: Fri Mar 23, 2012 7:58 am

Re: Kernel 5.2

Post by xeno74 »

FYI:
Christophe wrote:Le 02/07/2019 à 08:23, Christian Zigotzky a écrit :
> Hi All,
>
> I get the following error messages after compiling the RC7 of kernel 5.2:
>
> WARNING: vmlinux.o(.text+0x40e): Section mismatch in reference from the variable start_here_multiplatform to the function .init.text:.early_setup()
> The function start_here_multiplatform() references
> the function __init .early_setup().
> This is often because start_here_multiplatform lacks a __init
> annotation or the annotation of .early_setup is wrong.

Harmless warning.

Fix at https://git.kernel.org/pub/scm/linux/ke ... dc26eec86d

Will be cherry-picked by stable once merged into 4.3 I guess.

Christophe
http://www.amigalinux.org
http://www.supertuxkart-amiga.de

Running Linux on AmigaONEs can require some tinkering.

User avatar
xeno74
Posts: 5673
Joined: Fri Mar 23, 2012 7:58 am

Re: Kernel 5.2

Post by xeno74 »

Hi All,

Here is the RC7 of kernel 5.2 for the X5000 and X1000.

New:
It also includes:
  • X1000: pcmcia-v3 patch for solving the issues with new CF cards connected to the onboard CompactFlash Card Slot
  • X5000 and X1000: vgaarb patch for solving the issue with two graphics cards in an AmigaOne. Link to the bug report: Bug 109345 - drm-next-2018-12-14 -Linux PPC
  • X1000: Enabled the kernel config options CONFIG_PATA_PCMCIA, CONFIG_PCMCIA, and CONFIG_ELECTRA_CF for the pcmcia-v3 patch
  • X1000: compressed kernel (zImage) and uncompressed kernel (vmlinux)
Download: linux-image-5.2-rc7_X1000_X5000.tar.gz

Screenshot of a Samba Active Directory Domain Controller 4.10.2 with the RC7 of kernel 5.2 on openSUSE Tumbleweed PPC64:


@SailorMH
Please test it with your CF cards.

@Allan (Ace)
Please test it with your two installed graphics cards and with your Logitech wireless USB mouse. Can you switch with CTRL-ALT-F1 (F2, F3, F4 etc) to another terminal after booting with the xorg.conf?

@Mechanic
Please test it with your JMB363 card.

Thanks,
Christian
http://www.amigalinux.org
http://www.supertuxkart-amiga.de

Running Linux on AmigaONEs can require some tinkering.

User avatar
Skateman
Posts: 416
Joined: Thu Aug 10, 2017 8:36 pm
Location: The Netherlands

Re: Kernel 5.2

Post by Skateman »

Kernel 5.2 RC7 running fine on the AmigaOne X5000


Big picture http://www.skateman.nl/wp-content/uploa ... 220103.png

Sorry for the 1280x720 resolution screenshots due to a HDMI recorder between the X5K and the Monitor.
AmigaOne X5000 -> 2GHz / 16GB RAM / Radeon R7 250 / M-Audio 5.1 -> AmigaOS 4.1 FE / Ubuntu Linux
Amiga 1200 -> Recapped / 68ec020 ACA 1221ec / CF HDD / RetroNET connected to the world

User avatar
xeno74
Posts: 5673
Joined: Fri Mar 23, 2012 7:58 am

Re: Kernel 5.2

Post by xeno74 »

Skateman wrote:Kernel 5.2 RC7 running fine on the AmigaOne X5000
Hi Skateman,

Thanks a lot for testing the RC7 and many thanks for the screenshot! :-)

Have a nice weekend!

Cheers,
Christian
http://www.amigalinux.org
http://www.supertuxkart-amiga.de

Running Linux on AmigaONEs can require some tinkering.

User avatar
xeno74
Posts: 5673
Joined: Fri Mar 23, 2012 7:58 am

Re: Kernel 5.2

Post by xeno74 »

Hi All,

The final kernel 5.2.0 is available. :-)

New:
It also includes:
  • X1000: pcmcia-v3 patch for solving the issues with new CF cards connected to the onboard CompactFlash Card Slot
  • X5000 and X1000: vgaarb patch for solving the issue with two graphics cards in an AmigaOne. Link to the bug report: Bug 109345 - drm-next-2018-12-14 -Linux PPC
  • X1000: Enabled the kernel config options CONFIG_PATA_PCMCIA, CONFIG_PCMCIA, and CONFIG_ELECTRA_CF for the pcmcia-v3 patch
  • X1000: compressed kernel (zImage) and uncompressed kernel (vmlinux)
Download: linux-image-5.2-X1000_X5000.tar.gz

Thanks a lot to SailorMH and Mechanic for testing the kernels on the X1000 and many thanks to Skateman and Allan (acefnq) for testing the kernels on the X5000.

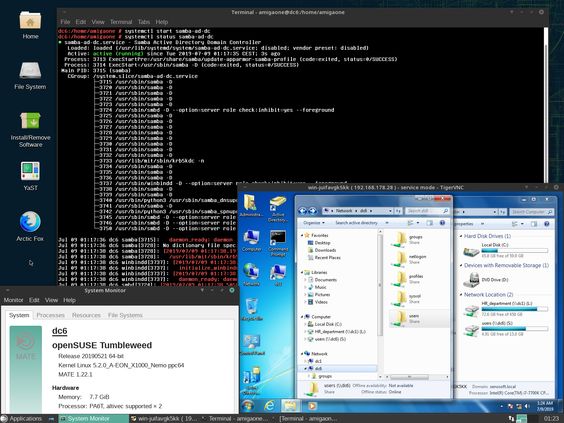

Screenshot of a Samba Active Directory Domain Controller 4.10.2 with the final kernel 5.2.0 on openSUSE Tumbleweed PPC64:


@SailorMH
Please test them with your CF cards.

@Allan (Ace)
Please test them with your two installed graphics cards and with your Logitech wireless USB mouse. Can you switch with CTRL-ALT-F1 (F2, F3, F4 etc) to another terminal after booting with the xorg.conf?

@Mechanic
Please test them with your JMB363 card.

Thanks,
Christian
http://www.amigalinux.org
http://www.supertuxkart-amiga.de

Running Linux on AmigaONEs can require some tinkering.

User avatar
xeno74
Posts: 5673
Joined: Fri Mar 23, 2012 7:58 am

Re: Kernel 5.2

Post by xeno74 »

Hi All,

I created a Tabor patch for the stable kernel 5.2 today. After that I compiled the stable kernel 5.2.11 for the Tabor board.

Download: linux-image-5.2.11-A1222.tar.gz

Please test it.

Could you also test it with all device tree blobs?

Downloads:
Thanks,
Christian
http://www.amigalinux.org
http://www.supertuxkart-amiga.de

Running Linux on AmigaONEs can require some tinkering.
