New kernels

AmigaOne X5000 platform specific issues related to Linux only.
User avatar
Skateman
Posts: 954
Joined: Thu Aug 10, 2017 9:36 pm
Location: The Netherlands

Re: New kernels

Post by Skateman »

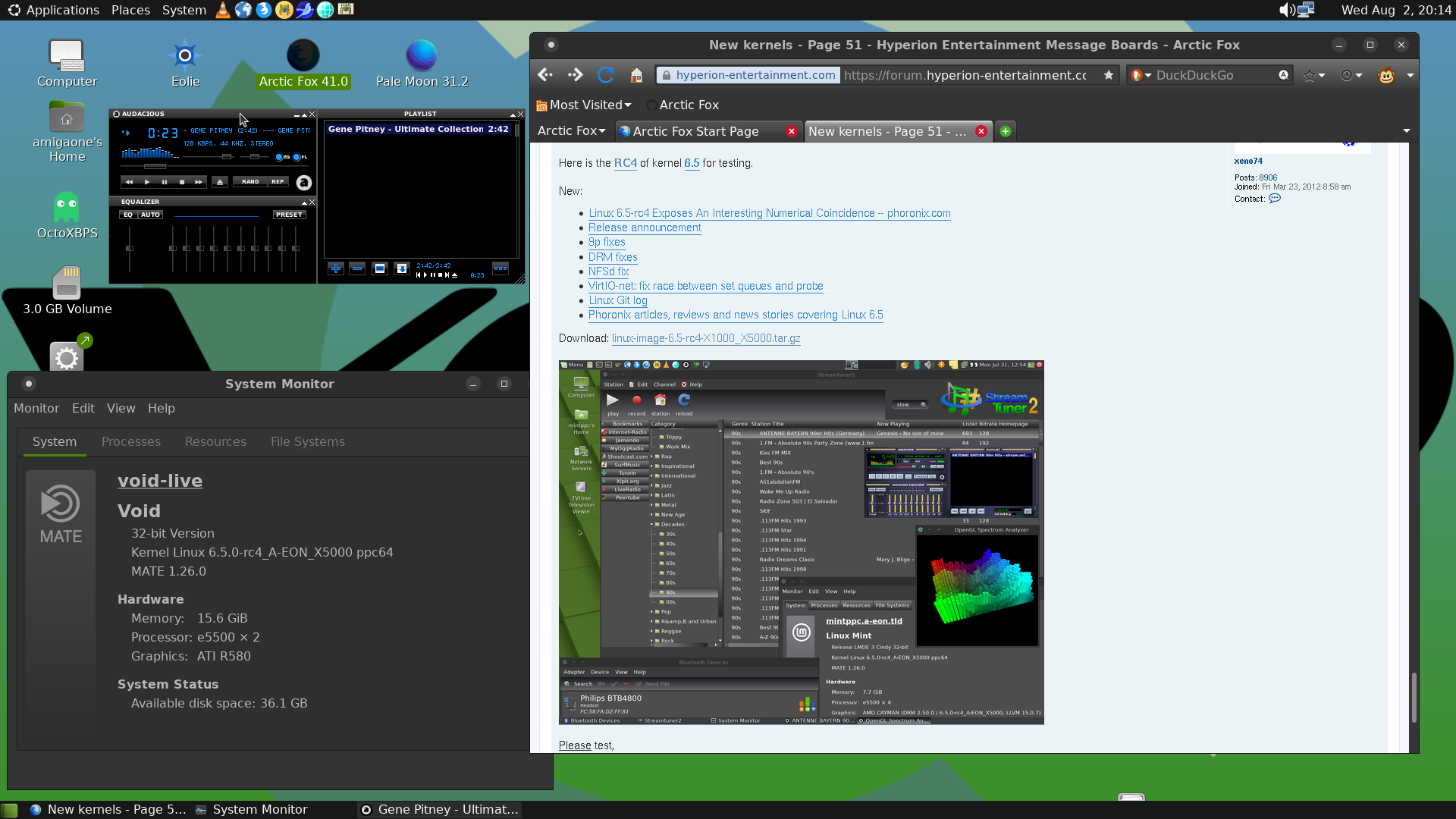

Kernel 6.5 RC4 is running fine on my AmigaOne X5000


Big picture https://www.skateman.nl/wp-content/uplo ... -14-57.png
AmigaOne X5000 -> 2GHz / 16GB RAM / Radeon RX 570 / Radeon X1950 / M-Audio 5.1 -> AmigaOS / Linux
Amiga 1200 -> Recapped / 68ec020 ACA 1221ec / CF HDD / RetroNET connected to the world
Vampire 4SA - RPi4 Running AmiKitXE Full
User avatar
xeno74
Posts: 10701
Joined: Fri Mar 23, 2012 7:58 am
Contact:

Re: New kernels

Post by xeno74 »

Skateman wrote: Wed Aug 02, 2023 9:19 pm Kernel 6.5 RC4 is running fine on my AmigaOne X5000
Thanks a lot for testing! :-)
User avatar
xeno74
Posts: 10701
Joined: Fri Mar 23, 2012 7:58 am
Contact:

Re: New kernels

Post by xeno74 »

Hi All,

I compiled the stable longterm kernel 5.10.188 today.

New:
Download: linux-image-5.10.188-X1000_X5000.tar.gz


Cheers,
Christian
User avatar
kilaueabart
Posts: 1186
Joined: Mon Mar 05, 2012 2:36 am

Re: New kernels

Post by kilaueabart »

Would you believe it? I tested maybe dozens of new kernels back in the good old days, but now I don't remember what to do with the linux-image-6.5-rc5-X1000_X5000.tar.gz that I downloaded and un-gz'ed yesterday!
User avatar
xeno74
Posts: 10701
Joined: Fri Mar 23, 2012 7:58 am
Contact:

Re: New kernels

Post by xeno74 »

kilaueabart wrote: Wed Aug 16, 2023 12:36 am Would you believe it? I tested maybe dozens of new kernels back in the good old days, but now I don't remember what to do with the linux-image-6.5-rc5-X1000_X5000.tar.gz that I downloaded and un-gz'ed yesterday!
You can copy the uImage-6.5 to a USB stick, onboard MicroSD card, or to a FAT16 boot partition on an SSD/HDD and boot it.

For example from the onboard MicroSD card:
  1. Code: Select all

    X5000> setenv bootargs root=/dev/sda6
  2. Code: Select all

    X5000> fatload mmc 0:1 1000000 uImage-6.5
  3. Code: Select all

    X5000> fatload mmc 0:1 2000000 cyrus-p5020.dtb
  4. Code: Select all

    X5000> bootm 1000000 - 2000000
User avatar
xeno74
Posts: 10701
Joined: Fri Mar 23, 2012 7:58 am
Contact:

Re: New kernels

Post by xeno74 »

Hi All,

Trevor's X5000 doesn't shut down with the RC5.
Trevor wrote: Quick update Christian,

Fienix does not shut down the computer when I exit Fienix. The screen goes blank when I click on the power down icon bu the computer remains powered up.

Trevor
Does your X5000 shut down with the RC5?

Thanks,
Christian
User avatar
kilaueabart
Posts: 1186
Joined: Mon Mar 05, 2012 2:36 am

Re: New kernels

Post by kilaueabart »

xeno74 wrote: Wed Aug 16, 2023 12:16 pm You can copy the uImage-6.5 to a USB stick, onboard MicroSD card, or to a FAT16 boot partition on an SSD/HDD and boot it.

For example from the onboard MicroSD card:
  1. Code: Select all

    X5000> setenv bootargs root=/dev/sda6
  2. Code: Select all

    X5000> fatload mmc 0:1 1000000 uImage-6.5
  3. Code: Select all

    X5000> fatload mmc 0:1 2000000 cyrus-p5020.dtb
  4. Code: Select all

    X5000> bootm 1000000 - 2000000
I don't recall ever doing anything like that. It was much simpler. Maybe what I did today is OK.

I have a folder linux-image-6.5-rc5-X1000_X5000 on my Fienix6 Desktop. Inside that folder is another, X5000_and_QEMU_e5000 which contains three folder icons labeled dtbs, kernel_modules, and src, and a text icon labeled uImage-6.5. I grabbed that last with the cursor and moved it over the 3.0 GB Volume icon on my desktop, and said "replace" when it asked if I wanted to, and then I successfully rebooted fienix6.

But I wonder if that is all I need to do? I sort of remember doing something with content of that "kernel_modules" folder.
User avatar
xeno74
Posts: 10701
Joined: Fri Mar 23, 2012 7:58 am
Contact:

Re: New kernels

Post by xeno74 »

kilaueabart wrote: Fri Aug 18, 2023 2:04 am I grabbed that last with the cursor and moved it over the 3.0 GB Volume icon on my desktop, and said "replace" when it asked if I wanted to, and then I successfully rebooted fienix6.
Good. Could you please check, if fienix6 uses the RC5 of kernel 6.5?
kilaueabart wrote: Fri Aug 18, 2023 2:04 am But I wonder if that is all I need to do? I sort of remember doing something with content of that "kernel_modules" folder.
You don’t need the kernel modules directory for booting the kernel. You can copy it to /lib/modules on your Linux partition later.
