Thanks.

I will see if I can get an installer iso done for both Sam440ep and Sam460ex later today.
If it works ok then everyone who wants to can do a fresh install .
I will have to assume that the Sam460ex 3.16.2 kernel will work ok.

Dont seem to be able to edit on the page.
these are my results
https://gist.github.com/anonymous/a631f910c4b49e6aaef2

Thank you very much. I have just added your Sam440ep Flex to the Ubuntu hardware website. 800MHz not bad.

Link: https://wiki.ubuntu.com/QATeam/Hardware

@javierdlr

Could you install Lubuntu 14.10 on your Sam460ex, please?

[Spectre660]

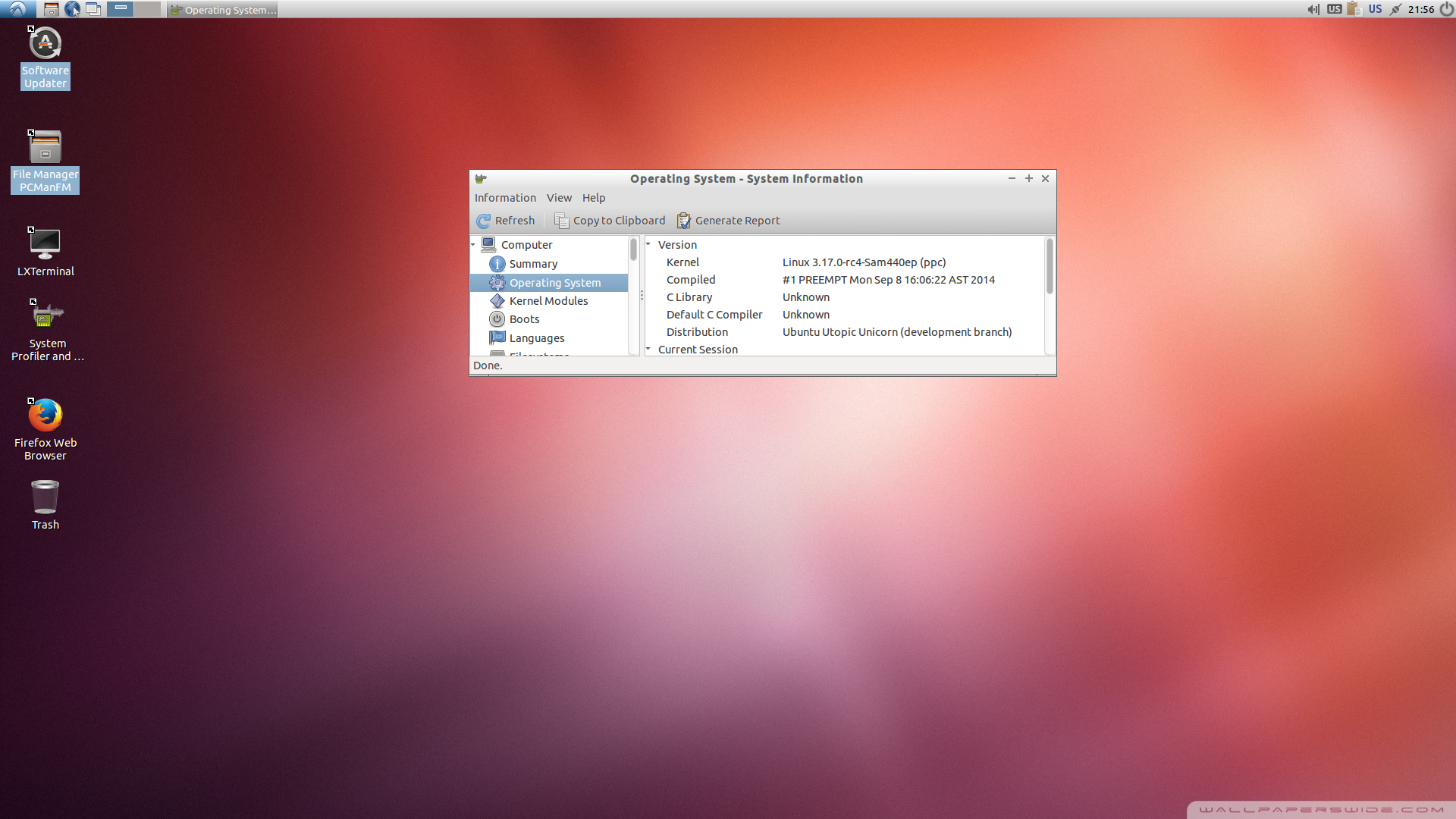

Sam440ep 3.17-rc4 Kernel

Tested with Lubuntu 14.04,Lubuntu 14.10 and Debian Jessie

https://dl.dropboxusercontent.com/u/542 ... rc4.tar.gz

[Spectre660]

Untested Sam460ex and Sam440ep Lubuntu 14.10 installer iso .

https://dl.dropboxusercontent.com/u/542 ... tall-1.iso

[javierdlr]

Done. Installation without problems (Lubuntu minimal) from lubuntu 14.10 netinstall ISO.

https://gist.github.com/anonymous/a751073185093805d6aa


kernel 3.17-rc4 fails here on my sam460ex, I get a black screen during startup:

Hidden Text - Click to Show :

[ 10.633035] [drm] radeon: dpm initialized
[ 10.640918] [drm] GART: num cpu pages 262144, num gpu pages 262144
[ 10.683682] [drm] PCIE GART of 1024M enabled (table at 0x0000000000273000).
[ 10.683887] radeon 0001:81:00.0: WB enabled
[ 10.683902] radeon 0001:81:00.0: fence driver on ring 0 use gpu addr 0x0000000040000c00 and cpu addr 0xc3dddc00
[ 10.683910] radeon 0001:81:00.0: fence driver on ring 3 use gpu addr 0x0000000040000c0c and cpu addr 0xc3dddc0c
[ 10.818118] radeon 0001:81:00.0: fence driver on ring 5 use gpu addr 0x0000000000072118 and cpu addr 0xf9b32118
[ 10.818135] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
[ 10.818138] [drm] Driver supports precise vblank timestamp query.
[ 10.818175] radeon 0001:81:00.0: ppc4xx_setup_msi_irqs: fail mapping irq
[ 10.866261] Unable to handle kernel paging request for data at address 0x0fa1fdfc
[ 10.872480] Faulting instruction address: 0xc03221d8
[ 10.876157] Vector: 300 (Data Access) at [c5d0fac0]
[ 10.876160] pc: c03221d8: __reg_op+0xe8/0x100
[ 10.876184] lr: c0014ca0: msi_bitmap_free_hwirqs+0x50/0x94
[ 10.876204] sp: c5d0fb70
[ 10.876207] msr: 21000
[ 10.876210] dar: fa1fdfc
[ 10.876213] dsisr: 0
[ 10.876216] current = 0xc5d9a5a0
[ 10.876221] pid = 1016, comm = systemd-udevd
[ 10.876245] enter ? for help
[ 10.876253] [link register ] c0014ca0 msi_bitmap_free_hwirqs+0x50/0x94
[ 10.876265] [c5d0fb70] c0014c90 msi_bitmap_free_hwirqs+0x40/0x94 (unreliable)
[ 10.876278] [c5d0fb90] c001ac00 ppc4xx_setup_msi_irqs+0xac/0xf4
[ 10.876294] [c5d0fbd0] c0350550 pci_enable_msi_range+0x1e0/0x280
[ 10.876317] [c5d0fc10] f97d2468 radeon_irq_kms_init+0x16c/0x198 [radeon]
[ 10.876685] [c5d0fc20] f981c270 evergreen_startup+0x1da8/0x2494 [radeon]
[ 10.876850] [c5d0fc50] f981cc60 evergreen_init+0x260/0x328 [radeon]
[ 10.877008] [c5d0fc60] f97a29e4 radeon_device_init+0x880/0xa24 [radeon]
[ 10.877156] [c5d0fc80] f97a4b7c radeon_driver_load_kms+0xa4/0x174 [radeon]
[ 10.877303] [c5d0fca0] f9289164 drm_dev_register+0x9c/0x120 [drm]
[ 10.877362] [c5d0fcc0] f928b810 drm_get_pci_dev+0xf4/0x190 [drm]
[ 10.877388] [c5d0fce0] c034105c pci_device_probe+0x78/0xd0
[ 10.877407] [c5d0fd00] c0394194 driver_probe_device+0xdc/0x208
[ 10.877420] [c5d0fd30] c039439c __driver_attach+0x78/0xa0
[ 10.877432] [c5d0fd50] c03926e0 bus_for_each_dev+0x8c/0x9c
[ 10.877451] [c5d0fd80] c03938c8 bus_add_driver+0xf8/0x1d4
[ 10.877465] [c5d0fda0] c039488c driver_register+0xb4/0xf8
[ 10.877477] [c5d0fdc0] c00016f0 do_one_initcall+0x114/0x198
[ 10.877491] [c5d0fe30] c006d4c0 load_module+0x1500/0x1b2c
[ 10.877511] [c5d0fee0] c006dc48 SyS_finit_module+0x64/0x74
[ 10.877525] [c5d0ff40] c000ad6c ret_from_syscall+0x0/0x3c
[ 10.877545] --- Exception: c01 (System Call) at 0fe1a5b0
[ 10.877553] SP (bffce7a0) is in userspace
[ 10.877555] mon> <no input ...>
[ 12.877612] Oops: Kernel access of bad area, sig: 11 [#1]
[ 12.881713] PREEMPT Canyonlands
[ 12.883572] Modules linked in: radeon(+) cfbfillrect cfbimgblt cfbcopyarea i2c_algo_bit drm_kms_helper ttm sm501 drm agpgart
[ 12.893681] CPU: 0 PID: 1016 Comm: systemd-udevd Not tainted 3.17.0-rc4-Sam460ex #1
[ 12.900042] task: c5d9a5a0 ti: c5d0e000 task.ti: c5d0e000
[ 12.904146] NIP: c03221d8 LR: c0014ca0 CTR: 00000001
[ 12.907818] REGS: c5d0fac0 TRAP: 0300 Not tainted (3.17.0-rc4-Sam460ex)
[ 12.913398] MSR: 00021000 <CE,ME> CR: 24228422 XER: 20000000
[ 12.918008] DEAR: 0fa1fdfc ESR: 00000000
GPR00: c0014c90 c5d0fb70 c5d9a5a0 0fa1fdfc ffefffff 00000001 00000002 00000000
GPR08: 00000002 00000000 00000001 c5d0fb70 24228424 1005504c 00020000 c070fcb8
GPR16: 1004d01c c077acb0 c05d8c00 c077ac94 f98ddcc4 00000000 00000124 c006adf4
GPR24: ef841d38 00000000 c07af828 ef841800 fffffff4 c07af828 00000000 00029000
[ 12.949491] NIP [c03221d8] __reg_op+0xe8/0x100
[ 12.952641] LR [c0014ca0] msi_bitmap_free_hwirqs+0x50/0x94
[ 12.956827] Call Trace:
[ 12.957977] [c5d0fb70] [c0014c90] msi_bitmap_free_hwirqs+0x40/0x94 (unreliable)
[ 12.964027] [c5d0fb90] [c001ac00] ppc4xx_setup_msi_irqs+0xac/0xf4
[ 12.968854] [c5d0fbd0] [c0350550] pci_enable_msi_range+0x1e0/0x280
[ 12.973930] [c5d0fc10] [f97d2468] radeon_irq_kms_init+0x16c/0x198 [radeon]
[ 12.979678] [c5d0fc20] [f981c270] evergreen_startup+0x1da8/0x2494 [radeon]
[ 12.985420] [c5d0fc50] [f981cc60] evergreen_init+0x260/0x328 [radeon]
[ 12.990713] [c5d0fc60] [f97a29e4] radeon_device_init+0x880/0xa24 [radeon]
[ 12.996356] [c5d0fc80] [f97a4b7c] radeon_driver_load_kms+0xa4/0x174 [radeon]
[ 13.002155] [c5d0fca0] [f9289164] drm_dev_register+0x9c/0x120 [drm]
[ 13.007156] [c5d0fcc0] [f928b810] drm_get_pci_dev+0xf4/0x190 [drm]
[ 13.012060] [c5d0fce0] [c034105c] pci_device_probe+0x78/0xd0
[ 13.016440] [c5d0fd00] [c0394194] driver_probe_device+0xdc/0x208
[ 13.021170] [c5d0fd30] [c039439c] __driver_attach+0x78/0xa0
[ 13.025470] [c5d0fd50] [c03926e0] bus_for_each_dev+0x8c/0x9c
[ 13.029852] [c5d0fd80] [c03938c8] bus_add_driver+0xf8/0x1d4
[ 13.034147] [c5d0fda0] [c039488c] driver_register+0xb4/0xf8
[ 13.038445] [c5d0fdc0] [c00016f0] do_one_initcall+0x114/0x198
[ 13.042919] [c5d0fe30] [c006d4c0] load_module+0x1500/0x1b2c
[ 13.047213] [c5d0fee0] [c006dc48] SyS_finit_module+0x64/0x74
[ 13.051596] [c5d0ff40] [c000ad6c] ret_from_syscall+0x0/0x3c
[ 13.055893] --- interrupt: c01 at 0xfe1a5b0
LR = 0xfefc08c
[ 13.060516] Instruction dump:
[ 13.062201] 38600001 4e800020 42400038 5549103a 394a0001 7d03482e 7d082378 7d03492e
[ 13.068780] 4bffffe8 4240001c 5549103a 394a0001 <7d03482e> 7d082038 7d03492e 4bffffe8
[ 13.075537] ---[ end trace 06813eeebc18afab ]---

[ 13.079053] note: systemd-udevd[1016] exited with preempt_count 1
[ 13.084915] BUG: scheduling while atomic: systemd-udevd/1016/0x00000002
[ 13.090282] Modules linked in: radeon(+) cfbfillrect cfbimgblt cfbcopyarea i2c_algo_bit drm_kms_helper ttm sm501 drm agpgart
[ 13.100408] Preemption disabled at:[< (null)>] (null)

[ 13.104637] CPU: 0 PID: 1016 Comm: systemd-udevd Tainted: G D 3.17.0-rc4-Sam460ex #1
[ 13.112137] Call Trace:
[ 13.113305] [c5d0f7b0] [c0005708] show_stack+0x54/0x138 (unreliable)
[ 13.118398] [c5d0f7f0] [c05bfac8] __schedule_bug+0x88/0xa0
[ 13.122619] [c5d0f800] [c05bbdb0] __schedule+0x90/0x49c
[ 13.126569] [c5d0f900] [c05be6d0] schedule_timeout+0x24/0x188
[ 13.131041] [c5d0f940] [c05bcb84] wait_for_common+0x178/0x1b4
[ 13.135520] [c5d0f980] [c0052090] wait_rcu_gp+0x50/0x58
[ 13.139481] [c5d0f9b0] [c04fbea4] netlink_release+0x224/0x288
[ 13.143958] [c5d0f9e0] [c04c9ea4] sock_release+0x30/0xc4
[ 13.147993] [c5d0f9f0] [c04c9f4c] sock_close+0x14/0x28
[ 13.151865] [c5d0fa00] [c00c39a8] __fput+0xf4/0x1f4
[ 13.155476] [c5d0fa20] [c0038c50] task_work_run+0x8c/0xa8
[ 13.159604] [c5d0fa40] [c00233bc] do_exit+0x300/0x7e8
[ 13.163391] [c5d0fa90] [c0007d70] die+0x1f8/0x200
[ 13.166814] [c5d0fab0] [c000b2a0] handle_page_fault+0x7c/0x80
[ 13.171300] --- interrupt: 300 at __reg_op+0xe8/0x100
LR = msi_bitmap_free_hwirqs+0x50/0x94
[ 13.178807] [c5d0fb70] [c0014c90] msi_bitmap_free_hwirqs+0x40/0x94 (unreliable)
[ 13.184862] [c5d0fb90] [c001ac00] ppc4xx_setup_msi_irqs+0xac/0xf4
[ 13.189698] [c5d0fbd0] [c0350550] pci_enable_msi_range+0x1e0/0x280
[ 13.194901] [c5d0fc10] [f97d2468] radeon_irq_kms_init+0x16c/0x198 [radeon]
[ 13.200672] [c5d0fc20] [f981c270] evergreen_startup+0x1da8/0x2494 [radeon]
[ 13.206422] [c5d0fc50] [f981cc60] evergreen_init+0x260/0x328 [radeon]
[ 13.211716] [c5d0fc60] [f97a29e4] radeon_device_init+0x880/0xa24 [radeon]
[ 13.217359] [c5d0fc80] [f97a4b7c] radeon_driver_load_kms+0xa4/0x174 [radeon]
[ 13.223183] [c5d0fca0] [f9289164] drm_dev_register+0x9c/0x120 [drm]
[ 13.228189] [c5d0fcc0] [f928b810] drm_get_pci_dev+0xf4/0x190 [drm]
[ 13.233096] [c5d0fce0] [c034105c] pci_device_probe+0x78/0xd0
[ 13.237477] [c5d0fd00] [c0394194] driver_probe_device+0xdc/0x208
[ 13.242204] [c5d0fd30] [c039439c] __driver_attach+0x78/0xa0
[ 13.246507] [c5d0fd50] [c03926e0] bus_for_each_dev+0x8c/0x9c
[ 13.250885] [c5d0fd80] [c03938c8] bus_add_driver+0xf8/0x1d4
[ 13.255180] [c5d0fda0] [c039488c] driver_register+0xb4/0xf8
[ 13.259483] [c5d0fdc0] [c00016f0] do_one_initcall+0x114/0x198
[ 13.263957] [c5d0fe30] [c006d4c0] load_module+0x1500/0x1b2c
[ 13.268263] [c5d0fee0] [c006dc48] SyS_finit_module+0x64/0x74
[ 13.272647] [c5d0ff40] [c000ad6c] ret_from_syscall+0x0/0x3c
[ 13.276944] --- interrupt: c01 at 0xfe1a5b0
LR = 0xfefc08c
[ 13.672767] eth0: link is up, 100 FDX, pause enabled
[ 42.989455] EXT3-fs (sda11): using internal journal
[ 44.986024] init: Error while reading from descriptor: Broken pipe
[ 45.077978] init: failsafe main process (1658) killed by TERM signal
[ 46.445112] Bluetooth: Core ver 2.19
[ 46.445921] NET: Registered protocol family 31
[ 46.445930] Bluetooth: HCI device and connection manager initialized
[ 46.445958] Bluetooth: HCI socket layer initialized
[ 46.445965] Bluetooth: L2CAP socket layer initialized
[ 46.445997] Bluetooth: SCO socket layer initialized
[ 46.500428] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 46.500439] Bluetooth: BNEP filters: protocol multicast
[ 46.500470] Bluetooth: BNEP socket layer initialized
[ 46.597647] Bluetooth: RFCOMM TTY layer initialized
[ 46.597685] Bluetooth: RFCOMM socket layer initialized
[ 46.597714] Bluetooth: RFCOMM ver 1.11
[ 47.556889] init: cups main process (1776) killed by HUP signal
[ 47.556960] init: cups main process ended, respawning

[xeno74]

Done. Installation without problems (Lubuntu minimal) from lubuntu 14.10 netinstall ISO.

https://gist.github.com/anonymous/a751073185093805d6aa

Thanks Javierdir. I have added your Sam460ex to the Ubuntu hardware list: https://wiki.ubuntu.com/QATeam/Hardware

[Spectre660]

Updated Sam440ep and Sam460ex Debian Jessie Installer
(Sam460ex installation Untested)

Kernel 3.16.2
Ext4 root partition

https://dl.dropboxusercontent.com/u/542 ... tall-2.iso

[virgola]

@Spectre660

The Kernel 3.16.2 for Sam460 works fine.
Here my details, just in case
https://gist.github.com/838232e3d9ac66c1ed04

[virgola]

Updated Sam440ep and Sam460ex Debian Jessie Installer

No luck with my Sam460.
As soon as the kernel is loaded the Sam460 simply reset.

[xeno74]

Updated Sam440ep and Sam460ex Debian Jessie Installer

No luck with my Sam460.
As soon as the kernel is loaded the Sam460 simply reset.

OK, I'll wait with the upload. Thank you for testing.

[Spectre660]

Thanks for testing.
The ramdisk may be too big.

Edit:
Does the ramdisk load or does the reset happen before ? .
I booted the Sam460ex installer on my Sam440ep-flex and both the kernel and ramdisk seem to have been uncompressed ok so
ramdisk size should not be the problem .

Updated Sam440ep and Sam460ex Debian Jessie Installer

No luck with my Sam460.
As soon as the kernel is loaded the Sam460 simply reset.
