Kernel 5.2

[acefnq]

Christian
I used the final drm11 test kernel and the alpha of 5.2. Outputs below, logitech mouse works fine under drm11

DRM11:
allan@Amigaone:~$ xinput list
⎡ Virtual core pointer id=2 [master pointer (3)]
⎜ ↳ Virtual core XTEST pointer id=4 [slave pointer (2)]
⎜ ↳ Logitech USB Receiver id=7 [slave pointer (2)]
⎜ ↳ Logitech USB Receiver Consumer Control id=8 [slave pointer (2)]
⎜ ↳ Microsoft Wired Keyboard 600 Consumer Control id=10 [slave pointer (2)]
⎜ ↳ Microsoft Wired Keyboard 600 id=12 [slave pointer (2)]
⎣ Virtual core keyboard id=3 [master keyboard (2)]
↳ Virtual core XTEST keyboard id=5 [slave keyboard (3)]
↳ Microsoft Wired Keyboard 600 id=9 [slave keyboard (3)]
↳ Microsoft Wired Keyboard 600 System Control id=11 [slave keyboard (3)]
allan@Amigaone:~$

5.2a
allan@Amigaone:~$ xinput list
⎡ Virtual core pointer id=2 [master pointer (3)]
⎜ ↳ Virtual core XTEST pointer id=4 [slave pointer (2)]
⎜ ↳ Logitech M280/320/275 id=7 [slave pointer (2)]
⎜ ↳ Microsoft Wired Keyboard 600 Consumer Control id=9 [slave pointer (2)]
⎜ ↳ Microsoft Wired Keyboard 600 id=11 [slave pointer (2)]
⎣ Virtual core keyboard id=3 [master keyboard (2)]
↳ Virtual core XTEST keyboard id=5 [slave keyboard (3)]
↳ Microsoft Wired Keyboard 600 id=8 [slave keyboard (3)]
↳ Microsoft Wired Keyboard 600 System Control id=10 [slave keyboard (3)]
allan@Amigaone:~$

ace

[xeno74]

Hi Ace,

Thanks for reporting the issue with your Logitech wireless USB mouse.

In my point of view the following updates are responsible for the issue.

Link: HID updates

I will try to compile a test kernel without these updates.

Cheers,
Christian

[xeno74]

Hi All,

Alex Deucher and Michel Dänzer have responded because of our results with git bisecting.

I'll send out a patch to revert the change.

Allan, please attach the /etc/X11/xorg.conf(.bak) file and the Xorg log files from the good and bad cases.

Link to the bug report: Bug 109345 - drm-next-2018-12-14 -Linux PPC

Cheers,
Christian

[acefnq]

Christian
Logs submitted. DRM1-11 plus K5.2alpha. Great work.

ace

[xeno74]

Christian
Logs submitted. DRM1-11 plus K5.2alpha. Great work.

ace

Hi Ace,

Many thanks for submitting the logs.

Have a nice weekend!

Cheers,
Christian

[xeno74]

Hi All,

The alpha3 of kernel 5.2 is available for testing.

New:

• PowerPC updates 5.2-1
• X1000: Kernel Userspace Execution Prevention (PPC_KUEP)
• X1000: Kernel Userspace Access Protection (PPC_KUAP)
• X5000: Additional test kernel (uImage-hid) without the HID updates because of the issue with Logitech wireless USB mice. (git revert b4dd05dee0dbd16afdbba83b698a7110c687be2d -m 1)
• Linux Git log
• Phoronix articles, reviews and news stories covering Linux 5.2

It also includes:

• X5000 and X1000: vgaarb patch for solving the issue with two graphics cards in an AmigaOne. Link to the bug report: Bug 109345 - drm-next-2018-12-14 -Linux PPC
• X1000: pata_of_platform-v2 patch for solving the issues with new CF cards connected to the onboard CompactFlash Card Slot
• X1000: Disabling the kernel config options CONFIG_PATA_PCMCIA, CONFIG_PCMCIA, and CONFIG_ELECTRA_CF for the pata_of_platform-v2 patch
• X1000: compressed kernel (zImage) and uncompressed kernel (vmlinux)

CF cards test thread: forum.hyperion-entertainment.com

Download: linux-image-5.2-alpha3-X1000_X5000.tar.gz

Screenshot of Fienix PowerPC with the kernel 5.2-alpha3:



@SailorMH
Please test it with your CF cards.

@Ace
Please test the default kernel (uImage-5.2) with your two installed graphics cards and the additional test kernel (uImage-hid without the HID updates) with your Logitech wireless USB mouse.

Thanks,
Christian

[Skateman]

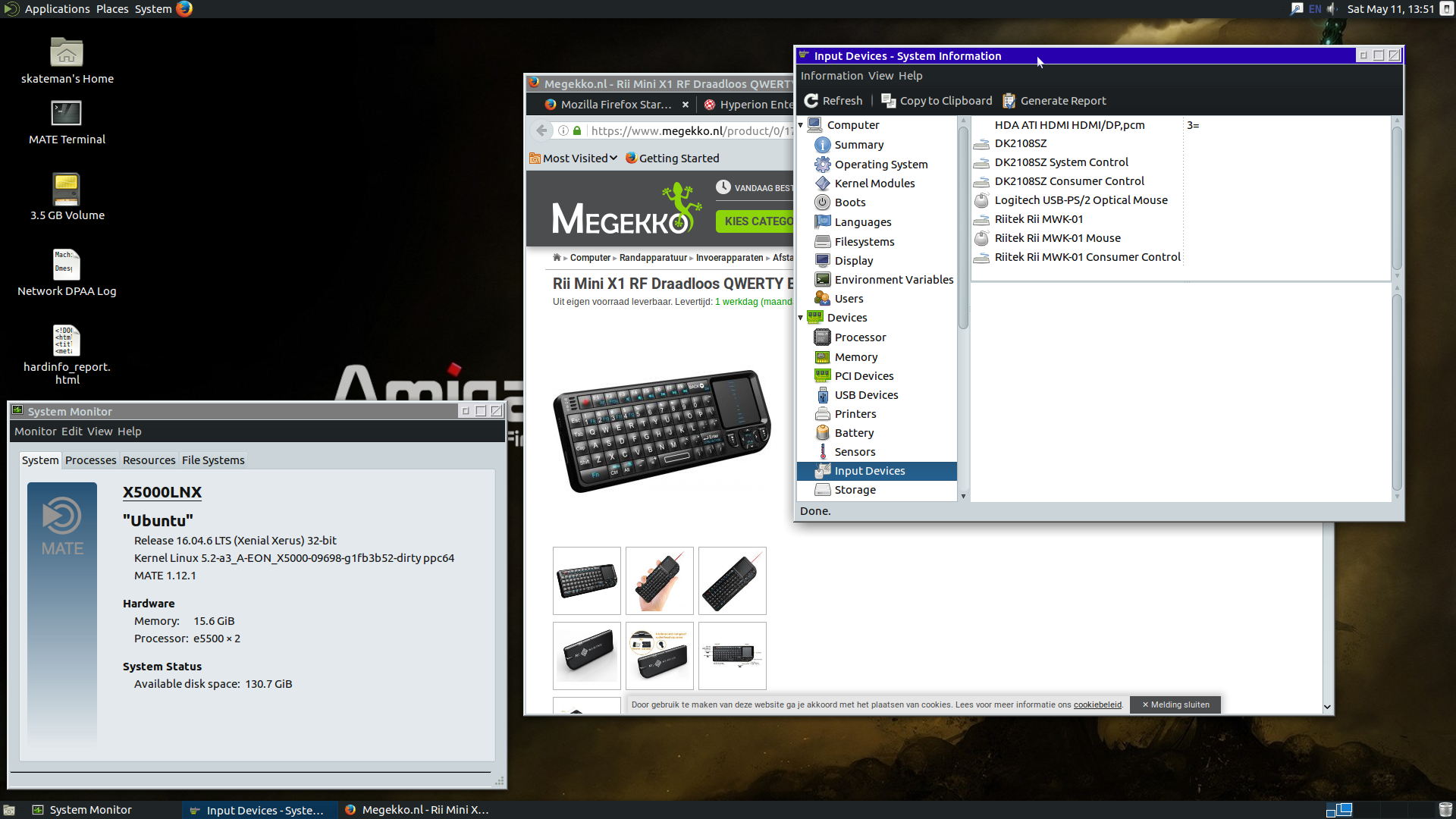

Kernel 5.2 Alpha 3 on the AmigaOne X5000. Also connected a Wireless USB/Mouse Riitek MWK01. All working fine.



Big picture http://www.skateman.nl/wp-content/uploa ... 135112.png

[acefnq]

Christian

uimage-5.2 boots to Firepro but wireless Logitech mouse does not work.
uimage-hid boots to Firepro and wireless Logitech mouse DOES work.

Cheers
ace

[xeno74]

Kernel 5.2 Alpha 3 on the AmigaOne X5000. Also connected a Wireless USB/Mouse Riitek MWK01. All working fine.

Hi Skateman,

Thanks a lot for testing the alpha3! It’s good to know that your wireless USB mouse/touchpad Riitek MWK01 works. Now, we know that only Logitech wireless USB mice are affected.

Have a great weekend!

Cheers,
Christian

[xeno74]

Christian

uimage-5.2 boots to Firepro but wireless Logitech mouse does not work.
uimage-hid boots to Firepro and wireless Logitech mouse DOES work.

Cheers
ace

Hi Ace,

Many thanks for testing the two alpha3 kernels!

Fantastic! We know that the issue of your Logitech wireless USB mouse is somewhere in the HID updates. We have to figure out where we can report this issue.

Cheers,
Christian
