Dual graphics cards - a couple of noob questions :-)

[Skateman]

@roland

GLmark2 showed me a small FPS increase compared to the X1 adapter. Now is the Radeon 7450 not a FPS beast at all..
What counts for me is the hardware acceleration, GLsupport etc. It makes the system feels more snappy than using the (a) FBdev Southern Island card which i used for several years.

I have to do some more tests regarding FPS stuff...

@JohnFante

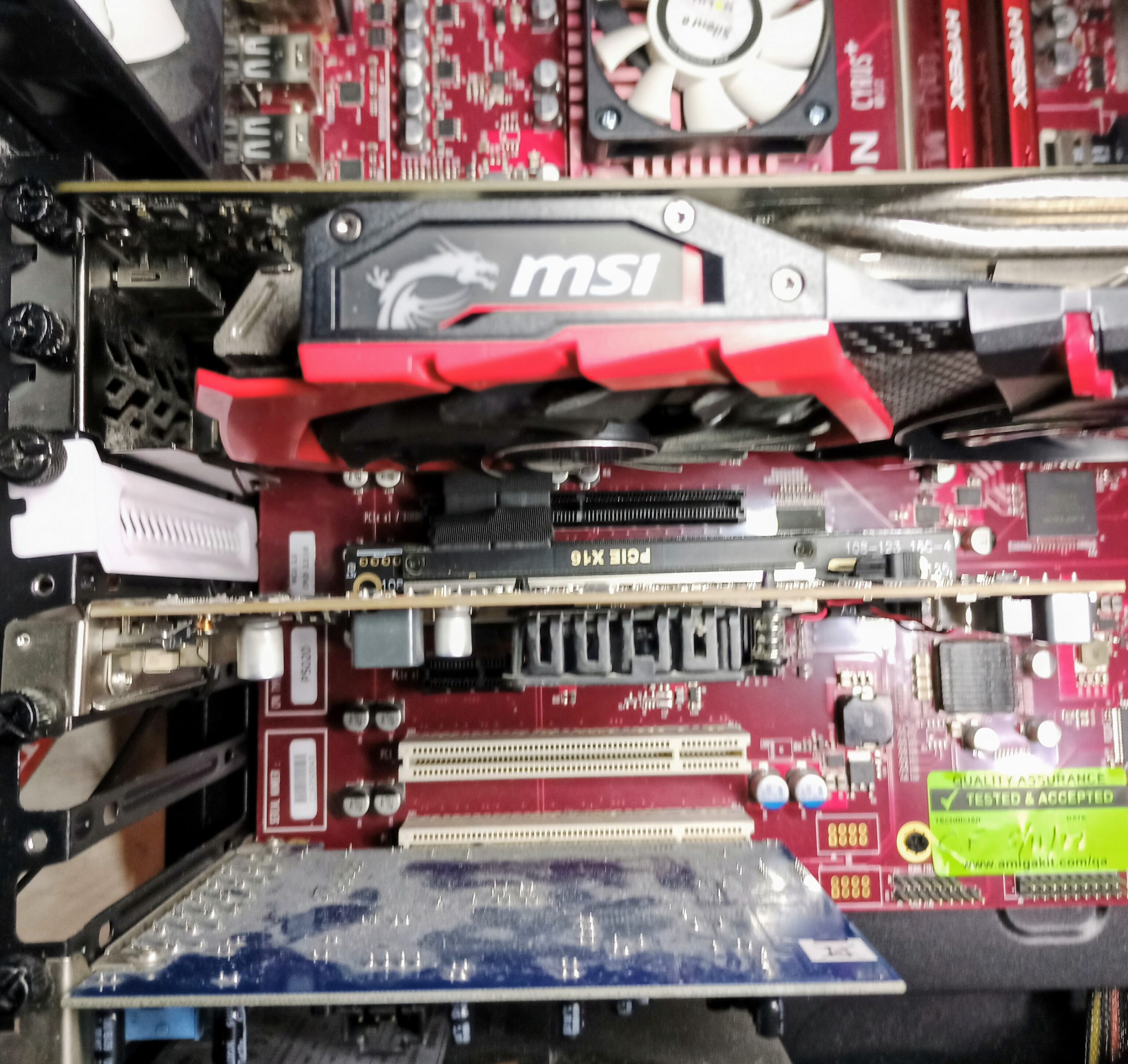

It works as well as the X1 adapter but the X4 cable is just more solid and spares at least one slot

[Skateman]

More GPU power for Linux.... HD 3870 ..!

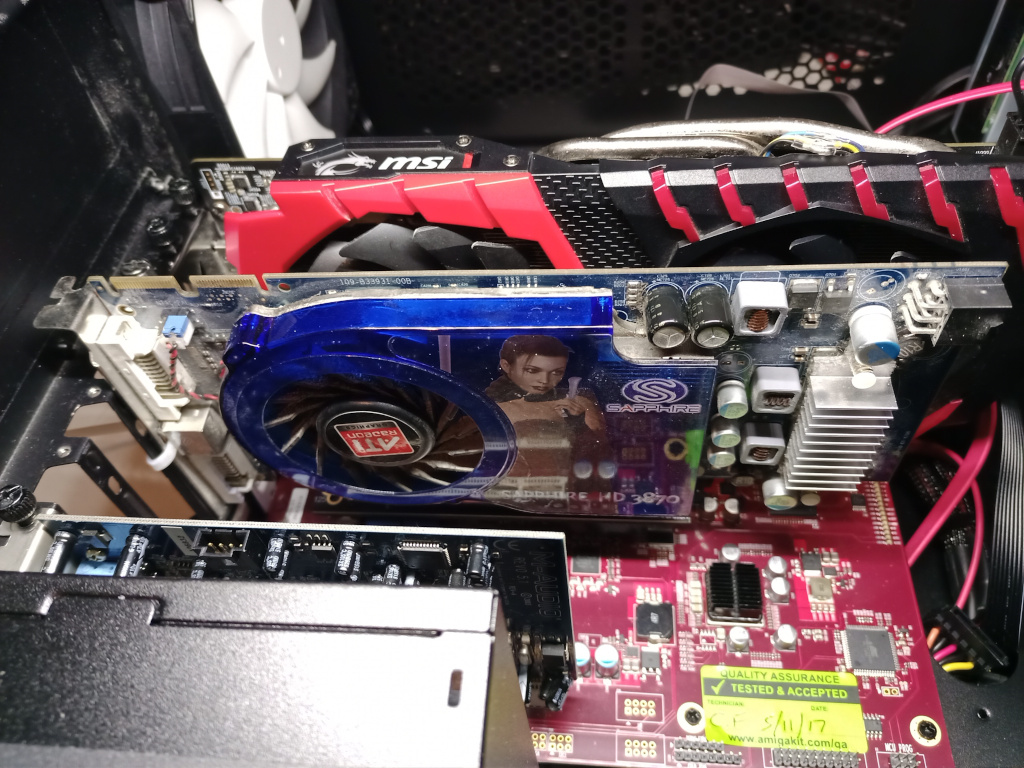

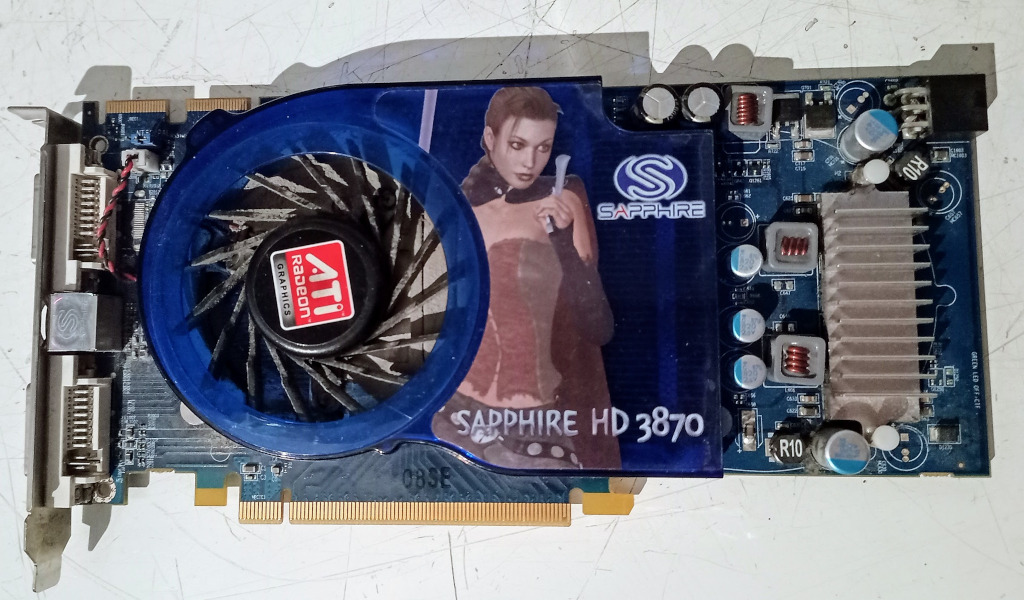

Today i tried to fit a full size Radeon HD 3870 in my X5000 using the X4 - X16 cable.
I had been using low profile cards along the way but with some quick and dirty fixes.... its up and running!!

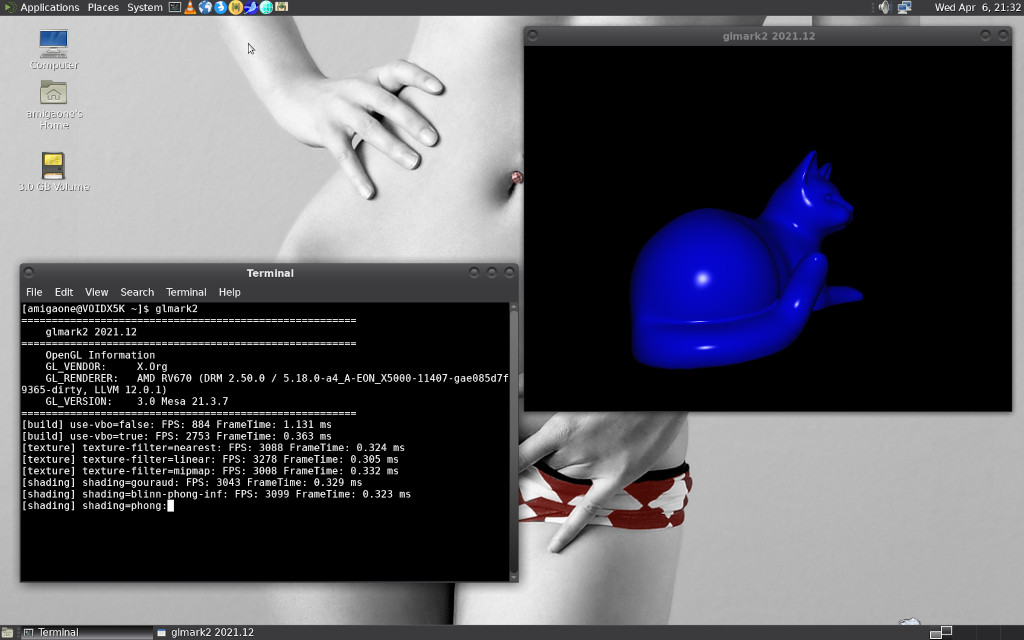

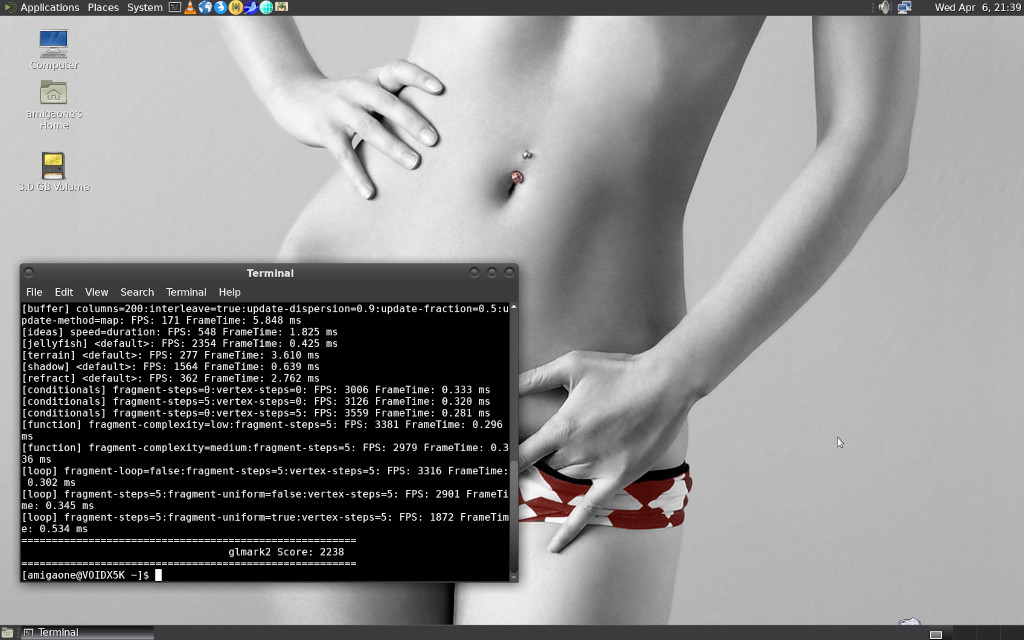

Compared to the 7450 Radeon.. this card is a BEAST GLmar2 score went from around 800 to 2200+

[xeno74]

2200+ is good. Well done!

For comparison:

X1000 with a Radeon HD6970 in an x16 PCIe 1.0 slot with 4000 MByte/s: 2040



X5000/40 with a Radeon HD6970 in an x4 PCIe 2.0 slot with 2000 MByte/s (AGP 8x: 2133 MByte/s): 2772

[Skateman]

Last weekend i replaced the Radeon HD3870 for a Radeon HD4770.



The cooling fan of the HD 4770 is more quiet that the HD 3870 ...





GLmark2 ... lets go..!





And the results are in .. with 1972 points a bit slower that the HD 3870, but with less noise it will remain in the X5000 for now.

[xeno74]

Great! I love this thread.

[Skateman]

I just couldn`t resist..... Time for a change.
I have just replaced the Radeon HD 4770 for a FirePro V3700.. lets see what happens....















And the results are in...... 764 .....

[xeno74]

Great! Thank you.

[Skateman]

A new card has arrived ... ... This time the HD 6770 to replace the FirePro V3700...







Lets ...go..





And the results are in..... 2221 !

And a bit of a mess

[xeno74]

And a bit of a mess

Great Collection Thanks a lot for testing!

[xeno74]

And the results are in..... 2221 !

Good result!
