Fienix 5.1 Spark

AmigaOne X5000 platform specific issues related to Linux only.
User avatar
caseycullen
Posts: 444
Joined: Sat Dec 17, 2016 7:12 am
Location: Madison, WI USA
Contact:

Fienix 5.1 Spark

Post by caseycullen »

I've uploaded an image for Fienix 5.1, codename Spark. It was a considerable task to weed out and fix packages this time, due to what I believe was an unfortunate and misguided decision at Debian. That said, most packages in Fienix Spark are the current version. However, I've held back KDE/Qt packages a few versions to ensure their operability and stability. I plan on building KDE/Qt packages myself for future updates instead of importing them from Debian since they seem to be the most problematic.

Spark is basically a stability release with quite a few refinements and creates a good foundation for going forward. Hopefully you can try it out!

Fienix Download Page Choose "Download Fienix Live Image" (second button).

Notes:
Spark starts in "compatibility mode" with fbdev and effects turned off. If you have a supported GPU you can use Fienix Companion to enable hardware acceleration.

If you require an input method platform, as I believe kilaueabart uses, please try SCIM.

Thanks!
Casey
User avatar
JohnFante
Beta Tester
Beta Tester
Posts: 183
Joined: Tue Sep 04, 2012 6:48 am
Location: Copenhagen, Denmark

Re: Fienix 5.1 Spark

Post by JohnFante »

Great! Thank you very much! :D

Is the install procedure the same as allways?
X5000 :-)
User avatar
xeno74
Posts: 8070
Joined: Fri Mar 23, 2012 7:58 am

Re: Fienix 5.1 Spark

Post by xeno74 »

caseycullen wrote: Wed Apr 06, 2022 6:48 am I've uploaded an image for Fienix 5.1, codename Spark.
Really great news! :-) Many thanks for your work! :-)
http://www.amigalinux.org
http://www.supertuxkart-amiga.de

Running Linux on AmigaONEs can require some tinkering.
User avatar
Skateman
Posts: 700
Joined: Thu Aug 10, 2017 8:36 pm
Location: The Netherlands

Re: Fienix 5.1 Spark

Post by Skateman »

Fienix 5.1 Spark up and running on my AmigaOne X5000/20

Playing around a bit and so far.....its just GREAT!!!!!

Thanks so much Casey. Keep up the good work

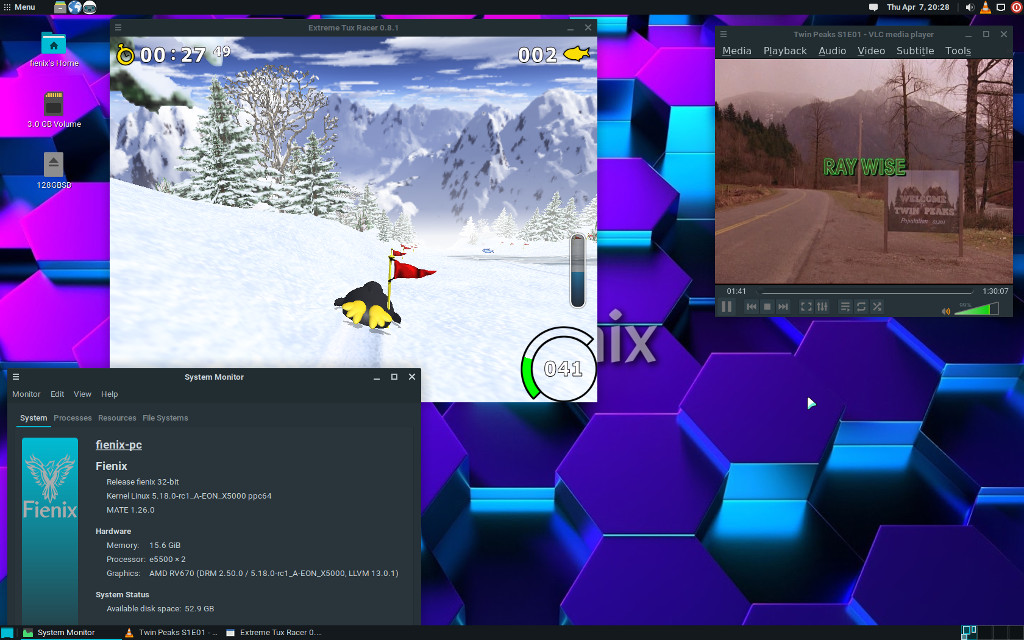

big picture: https://www.skateman.nl/wp-content/uplo ... -28-40.png
AmigaOne X5000 -> 2GHz / 16GB RAM / Radeon RX 570 / Radeon 7450 / M-Audio 5.1 -> AmigaOS / Linux
Amiga 1200 -> Recapped / 68ec020 ACA 1221ec / CF HDD / RetroNET connected to the world
User avatar
caseycullen
Posts: 444
Joined: Sat Dec 17, 2016 7:12 am
Location: Madison, WI USA
Contact:

Re: Fienix 5.1 Spark

Post by caseycullen »

Skateman wrote: Thu Apr 07, 2022 9:33 pm Fienix 5.1 Spark up and running on my AmigaOne X5000/20

Playing around a bit and so far.....its just GREAT!!!!!
That's awesome, thanks for the feedback!
-Casey
User avatar
caseycullen
Posts: 444
Joined: Sat Dec 17, 2016 7:12 am
Location: Madison, WI USA
Contact:

Re: Fienix 5.1 Spark

Post by caseycullen »

JohnFante wrote: Wed Apr 06, 2022 9:18 am Great! Thank you very much! :D

Is the install procedure the same as allways?
Yes, setup a boot partition and a main partition. Boot files (uImage and device tree) go in the boot partition. dd the image to the main partition and check the partition with gparted after the image has copied over.
I'm working on a tool that will handle most of this but it isn't finished yet.
-Casey
Roland
Posts: 719
Joined: Tue May 02, 2017 7:23 am

Re: Fienix 5.1 Spark

Post by Roland »

@caseycullen

I tried to run Spark in my machine but it does not work as expected... I can login from the terminal screen, but cannot load any desktop. 'Lightdm' is not found if I try it as 'fienix', and if I use 'root' there is a warning the disk is read-only and a log file cannot be written. 'Startx' does not work either, it exits before getting any desktop visible.

I used 5.10 kernel and 5.10 uInitrd, which work ok with 'Soar' and with the original Fienix installation.

Edit: Tested also with kernel 5.15 (and uInitrd 5.12, have seen not seen a newer one), the same problems!
Last edited by Roland on Fri Apr 08, 2022 6:00 pm, edited 1 time in total.
- Roland -
User avatar
Skateman
Posts: 700
Joined: Thu Aug 10, 2017 8:36 pm
Location: The Netherlands

Re: Fienix 5.1 Spark

Post by Skateman »

Hi Roland,

I had the save issue but copied my Xorg.conf (from previous linux install) in the /etc/X11 directory.
After a reboot all was fine based on my Radeon driver. If you are using a HD card, use the FBdev driver.

Dave
AmigaOne X5000 -> 2GHz / 16GB RAM / Radeon RX 570 / Radeon 7450 / M-Audio 5.1 -> AmigaOS / Linux
Amiga 1200 -> Recapped / 68ec020 ACA 1221ec / CF HDD / RetroNET connected to the world
Roland
Posts: 719
Joined: Tue May 02, 2017 7:23 am

Re: Fienix 5.1 Spark

Post by Roland »

Skateman wrote: Fri Apr 08, 2022 5:59 pm I had the save issue but copied my Xorg.conf (from previous linux install) in the /etc/X11 directory.
After a reboot all was fine based on my Radeon driver. If you are using a HD card, use the FBdev driver.
Thanks for the tip, but unfortunately it did not have any effect on my system. I have a HD 7450 (Caicos; the same as 6450). My kernels etc. are on the BootSD, and the Fienix5 root partition is on a USB stick.

Here is the xorg.conf I used:

Code: Select all

Section "Monitor"
Identifier "Monitor0"
EndSection

Section "Device"
Identifier "Device0"
Driver "fbdev"
#Driver "radeon"
EndSection

Section "Screen"
Identifier "Screen0"
Device "Device0"
Monitor "Monitor0"
DefaultDepth 24
SubSection "Display"
Viewport 0 0
Depth 24
EndSubSection
EndSection
- Roland -
User avatar
Skateman
Posts: 700
Joined: Thu Aug 10, 2017 8:36 pm
Location: The Netherlands

Re: Fienix 5.1 Spark

Post by Skateman »

Ahhh the Caicos does not need the FBdev.. but you can use Radeon as the driver.

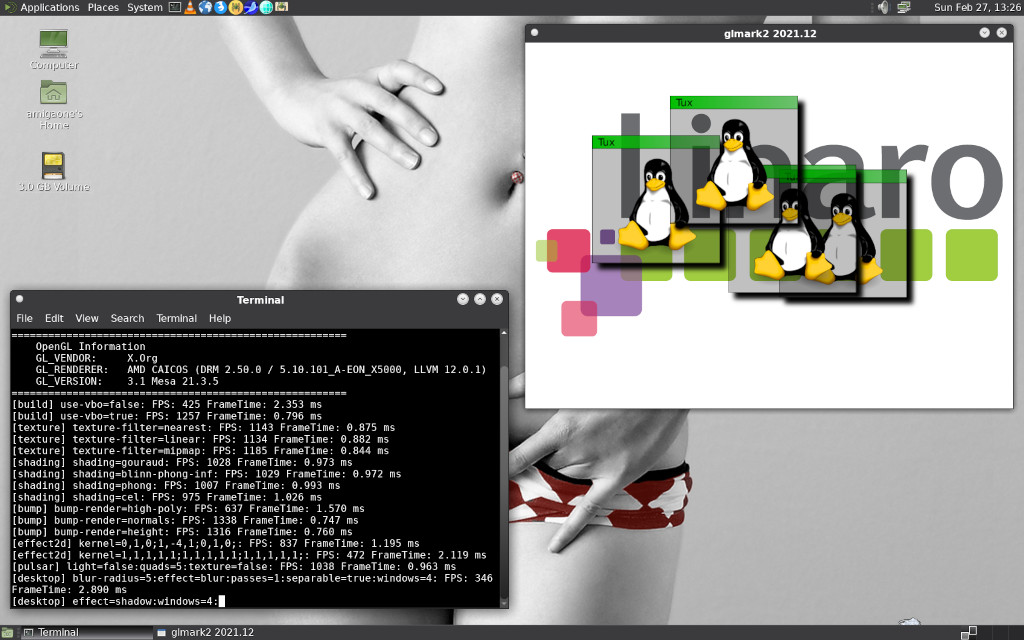

I have been using this card as well with 3D support.


Try this Xorg.conf

Section “Monitor”
Identifier “Monitor0”
EndSection

Section “Device”
Identifier “Device1”
Driver “radeon”
EndSection

Section “ServerFlags”
Option “AIGLX” “on”
EndSection

Section “Module”
Load “dri”
Load “dri2”
Load “dbe”
Load “glx”
Load “type1”
Load “freetype”
Load “record”
EndSection

Section “DRI”
Mode 0666
EndSection

Section “Extensions”
Option “Composite” “Enable”
Option “RENDER” “Enable”
Option “RANDR” “Enable”
Option “DAMAGE” “Enable”
Option “GLX” “Enable”
EndSection

Section “Screen”
Identifier “Screen0”
Device “Device0”
Monitor “Monitor0”
DefaultDepth 24
SubSection “Display”
Depth 24
Viewport 0 0
EndSubSection
EndSection
AmigaOne X5000 -> 2GHz / 16GB RAM / Radeon RX 570 / Radeon 7450 / M-Audio 5.1 -> AmigaOS / Linux
Amiga 1200 -> Recapped / 68ec020 ACA 1221ec / CF HDD / RetroNET connected to the world
